705C-L Invisible Hinge / Concealed Hinge (40kg)

Invisible Hinge / Concealed Hinge (40kg) 705C-L

Choose Color
SV
Specification

Product specification:124 x 25 mm with stop

Applicable for trap door/hidden door/folding door
After SGS testing, it can be used over 200 thousand times.
Easy to install and adjust.

Minimum door thickness: 30 mm. Minimum door frame depth: 38 mm.
Stainless steel cover is attached for exterior aesthetics and to make the surface flatter after work is completed.

Maximum 40 kg for two pieces
Maximum 60 kg for three pieces

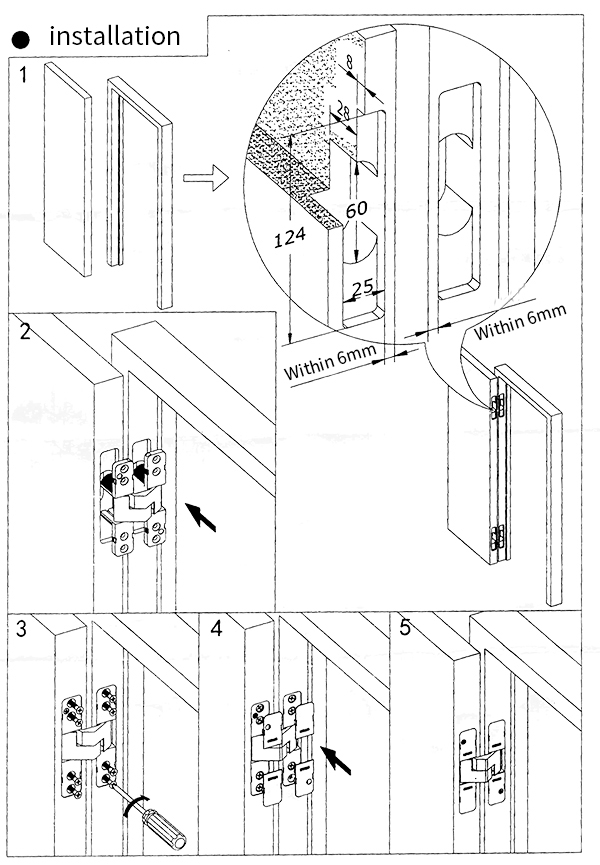

Detail information

  • Suggestion: all hole sizes are based on actual product after delivery
